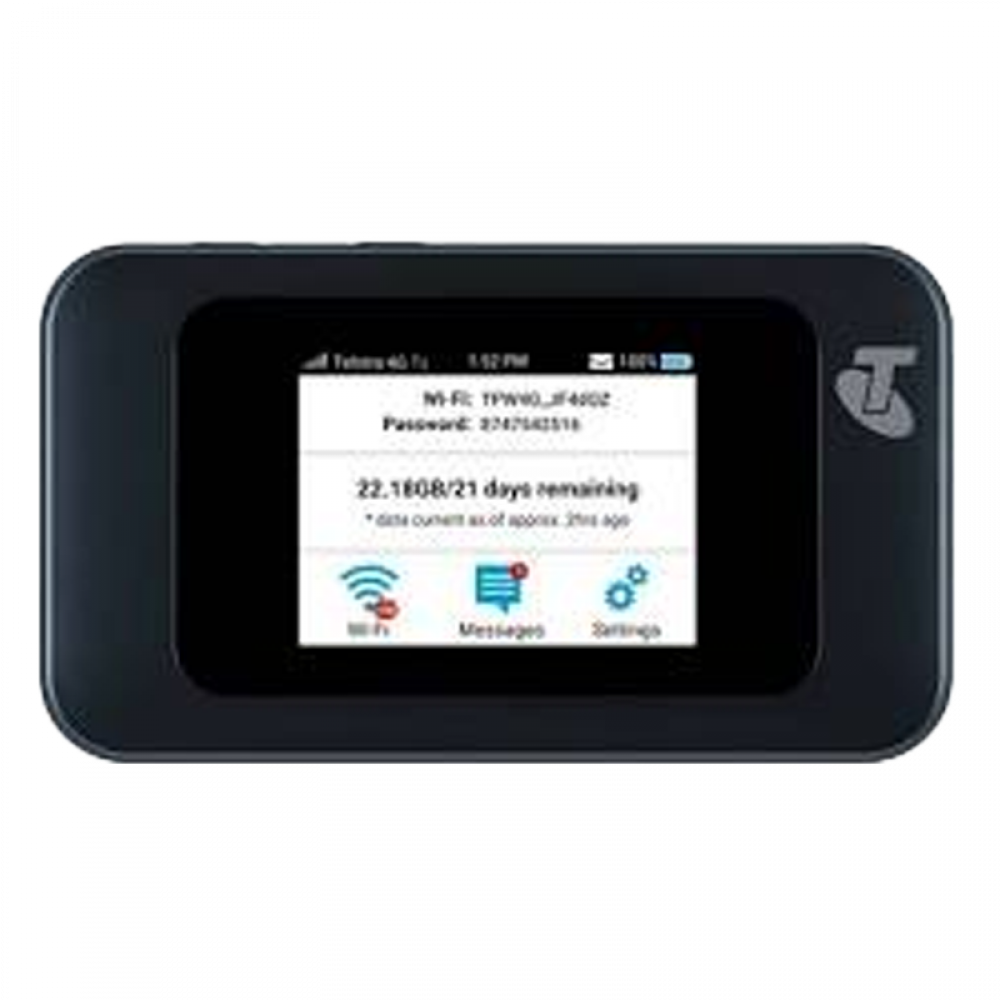

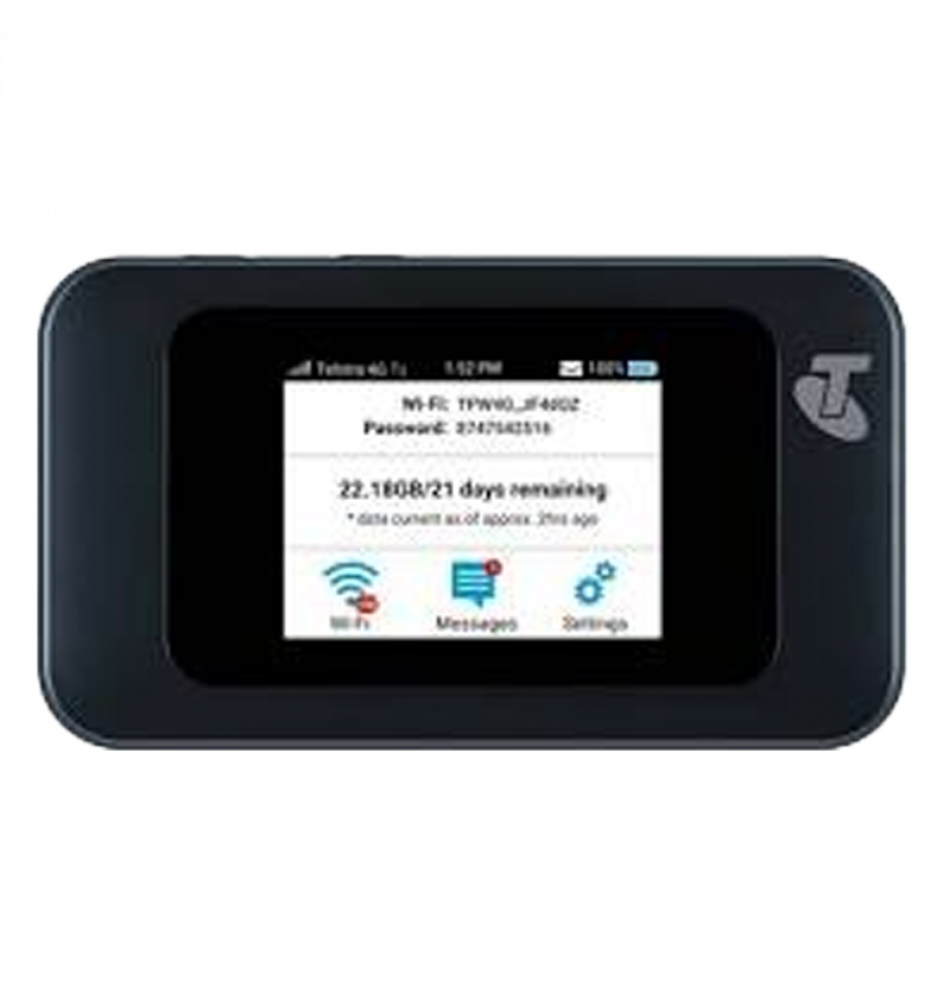

TELSTRA 4GX WI FI HOTSPOT MF985T

General Features:

• Network Compatibility: It operates on Telstra's 4G and 3G networks. Specifically, it supports 4G LTE bands 2100(B1), 1800(B3), 2600(B7), 900(B8), and 700(B28).

• Connectivity: It can connect up to 20 Wi-Fi-enabled devices at the same time, including smartphones, tablets, and laptops.

• Speed: The device is capable of Cat 12 LTE download speeds of up to 600 Mbps.

• Touch Screen: It has a 2.4-inch color LCD touch screen that displays important information like network connection status and data usage.

• Battery: It has a 3000 mAh battery, which provides up to 10 hours of active use and up to 350 hours of standby time. The battery is also user-replaceable.

• SIM Card: It uses a Nano SIM card (4FF). The prepaid version is locked to the Telstra network.

• External Antenna Ports: It features dual TS9 antenna ports, allowing you to connect an external antenna to improve signal strength in areas with weak reception.

• Dimensions: It is compact and lightweight, with dimensions of 115.1 × 66.1 × 15.5 mm and a weight of 128 grams.

• Charging: It comes with an AC charger and a USB cable. It has a protected charging mode to prevent overcharging.

How to Use (Basic Steps):

1. Insert SIM: Ensure you are using a Telstra nano-SIM card.

2. Activate SIM: If it's a new SIM, you will need to activate it online.

3. Power On: Press and hold the power button for a few seconds.

4. Connect Devices:

   • On the device you want to connect, enable Wi-Fi and search for the hotspot's network name (SSID).

   • The network name and password will be displayed on the hotspot's screen.

   • Enter the password to connect to the Wi-Fi network.

You can also manage the device settings, view data usage, and change Wi-Fi settings through its web interface by connecting a device to the hotspot and going to http://m.home or 192.168.0.1 in your browse
